BMW S50B32 VANOS SEAL KIT



Kit 001 (BMW S50B32 O-Ring Kit)

(prices updated 09/05/2023, BMW prices are from 2016)

Please contact me (sales[at]porterbility.co.uk).  The kit costs £85 and postage is free within the UK.  Please ask for postage prices from abroad.



I can supply a seal kit to overhaul the vanos on your BMW S50B32 engine.  Unlike other kits, I will also provide a set of solenoid o-rings.  The solenoid o-rings alone cost £50 from BMW.

All the O-Rings in the kit are VITON.  I have used these seals to overhaul my vanos and my car now runs as sweet as a nut.  It is said that the original BMW S62 solenoid o-rings have multiple facets that make them more than just simple VITON O-Rings.  If you use the solenoid o-rings in my kit, you do so at your own risk.



Individual seals are available on request.

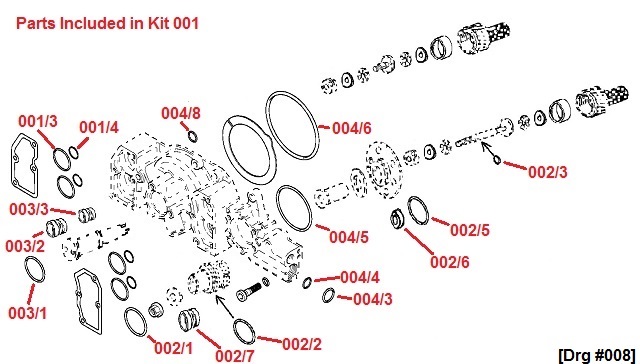

Click here for an image of the seals that are in the kit.  The numbers on the image refer to the table below...

Drg# / Item No

Description

Qty

Req’d

BMW Part Number

BMW Price

(inc VAT)

Part of

Porterbility

Kit 001

Individual Seal Price (each)

001 / 1

Exhaust Solenoid Gasket

1

11 36 1 404 154

£8.03





001 / 2

Inlet Solenoid Gasket

1

11 36 1 402 659

£8.03





001 / 3

Large Solenoid Seal

4

11 36 7 830 828

£4.09 x 4 =

£16.37

Yes

£2.00

001 / 4

Small Solenoid Seal

4

11 36 7 830 829

£8.40 x 4 =

£33.60

Yes

£2.00

002 / 1

Inlet Front Cover O-Ring

1

11 31 1 317 730

£4.13

Yes

£2.00

002 / 2

Inlet Valve O-Ring

1

11 31 1 317 741(*)

£2.12

Yes

£2.00

002 / 3

Inlet Pinion Shaft O-Ring

1

11 31 1 722 056

£4.14

Yes

£2.00

002 / 4

Inlet Pinion Shim Kit

1









002 / 5

Inlet Rear Cover O-Ring

1

11 31 1 317 741(*)

£2.12

Yes

£2.00

002 / 6

Inlet Rear Cover Oil Seal

1





Yes

£17.50

002 / 7

Inlet Piston Compound Seal

1





Yes

£15.00

002 / 8

Inlet Piston Locking Nut

1

11 36 1 313 170

£4.54





003 / 1

Exhaust Cover O-Ring

1

11 31 1 317 741(*)

£2.12

Yes

£2.00

003 / 2

Large Exhaust Piston Compound Seal

1





Yes

£15.00

003 / 3

Small Exhaust Piston Compound Seal

1





Yes

£15.00

003 / 4

Exhaust Pinion Shim Kit

1









004 / 1

Vanos Filter

1

11 36 1 401 973

£11.30





004 / 2

Vanos Filter Seal

1

07 11 9 963 073

£0.29





004 / 3

Large Pressure Relief Valve O-Ring

1

11 36 1 403 325

£6.20

Yes

£2.00

004 / 4

Small Pressure Relief Valve O-Ring

1

11 31 1 318 659

£8.40

Yes

£2.00

004 / 5

Medium Rear Face O-Ring (Inlet)

1

11 31 1 317 732

£23.70

Yes

£5.00

004 / 6

Large Rear Face O-Ring (Exhaust)

1

11 36 1 403 704

£3.12

Yes

£5.00

004 / 7

Stop Disk / Thrust Washer

1

11 36 1 404 047

£7.72





004 / 8

Small Rear Face O-Ring (Oil)

1

11 31 1 317 318

£2.75

Yes

£2.00

005 / 1

Inlet Hub Diaphragm Spring and Shim

1

11 36 7 833 218

£24.11





006 / 1

Exhaust Hub Diaphragm Spring and Shim

1

11 36 7 833 218

£24.11





007 / 1

Timing Chain Tensioner Seal

1

07 11 9 963 418

£0.84







11 31 1 317 741(*) the Inlet Rear Cover O-Ring and the Inlet Valve O-Ring are not shown on RealOEM, but they are dimensionally the same as the Exhaust Cover O-Ring.



To service ALL the parts of your VANOS, you will need ALL the numbered parts in the linked images.

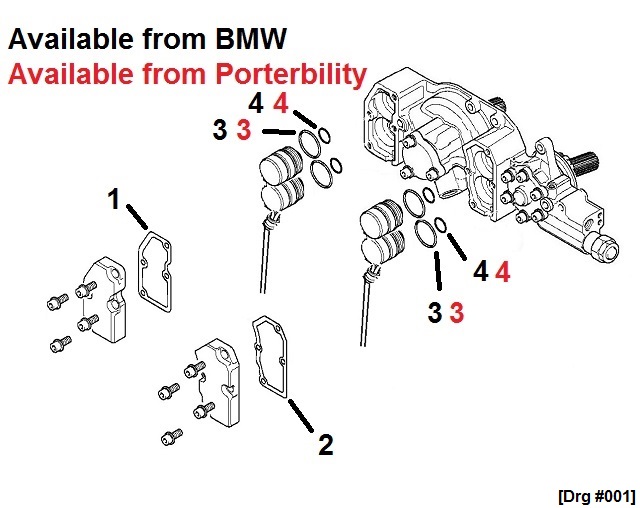

Vanos Solenoids (Drg #001)

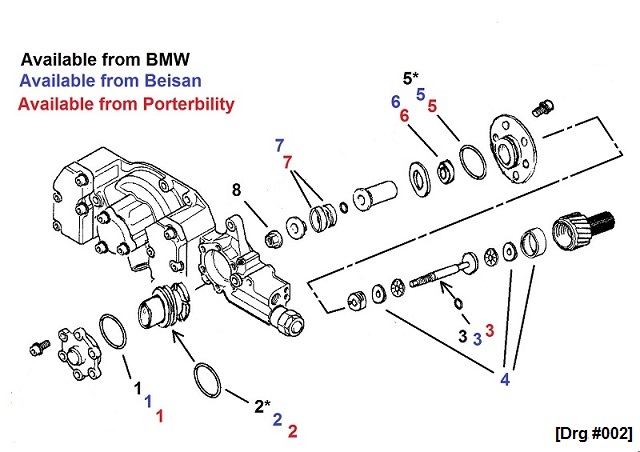

Vanos Inlet Parts (Drg #002)

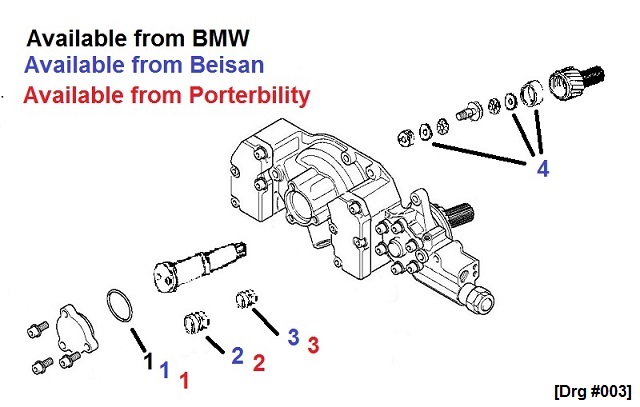

Vanos Exhaust Parts (Drg #003)

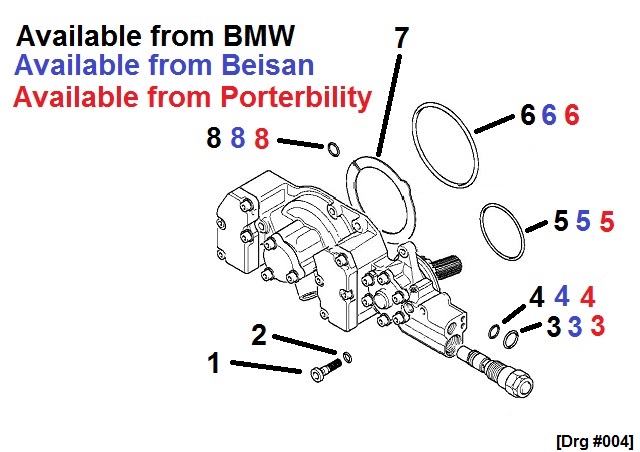

Vanos Additional Parts (Drg #004)

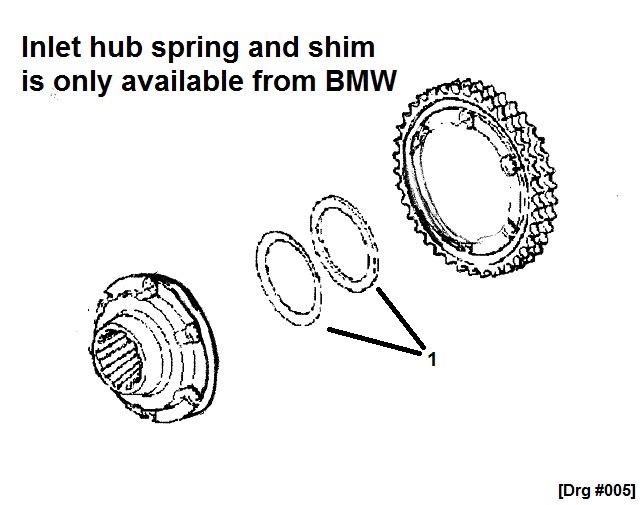

Vanos Inlet Hub (Drg #005)

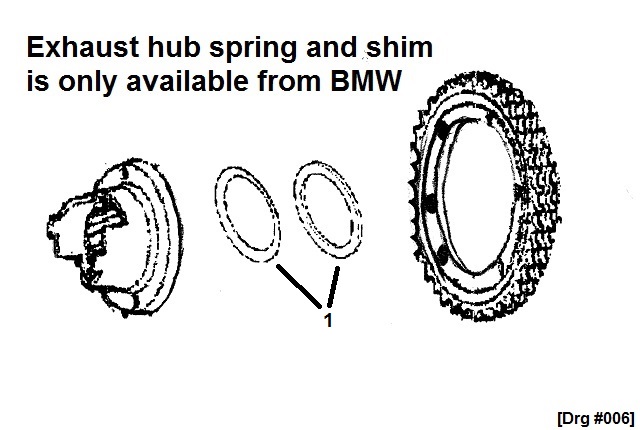

Vanos Exhaust Hub (Drg #006)

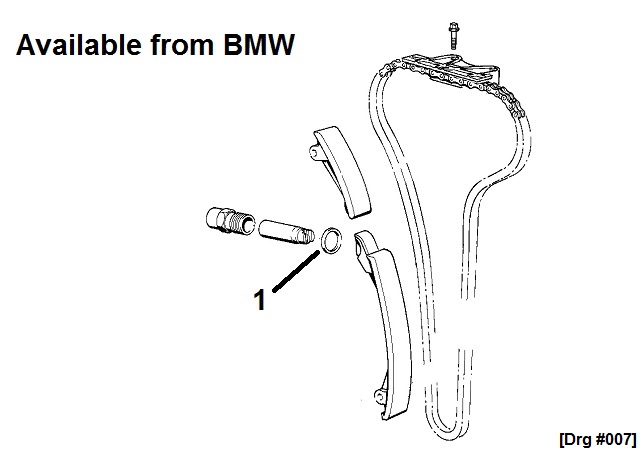

Timing Chain Tensioner Seal (Drg #007)

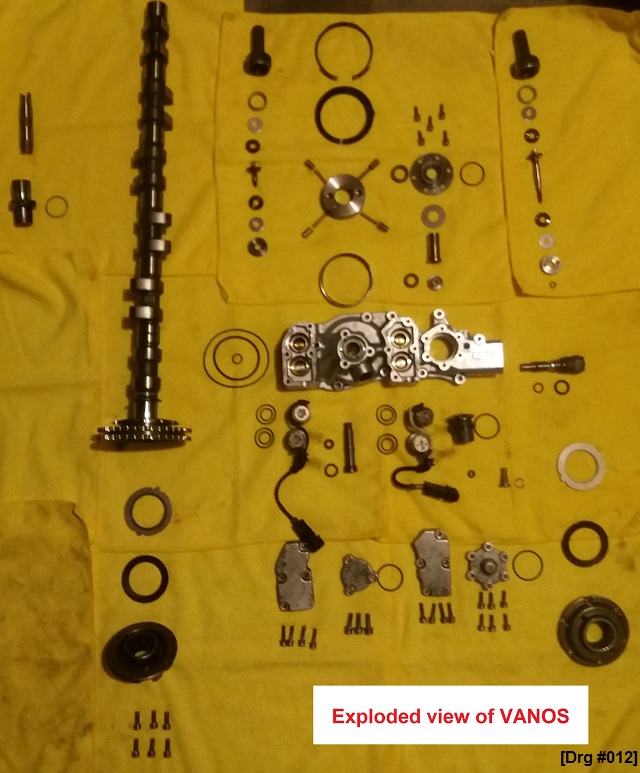

Click here for a picture of the vanos totally stripped to its components parts (Drg #012)



See my videos to decide how deep you want to go.

Removing your VANOS – this video shows you how to remove the vanos only



Removing your VANOS AND Replacing the Diaphragm Springs – this video shows you how to remove the vanos AND replace the diaphragm springs.  You remove the vanos in a different way if you are replacing the diaphragm springs as well.



Overhauling your VANOS  – this video shows you how to service every seal in your vanos and links to other videos for more detailed servicing that you may want to do.

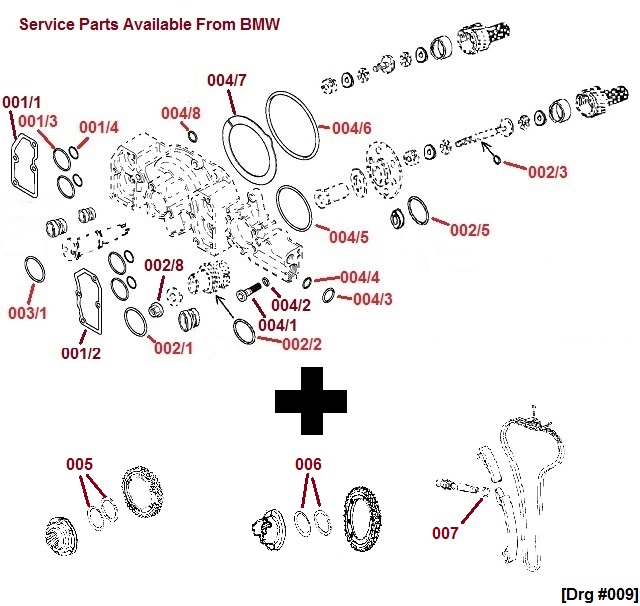

Click here for the parts that you will need from BMW

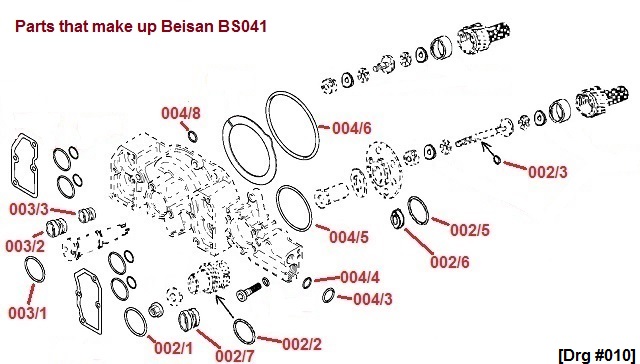

Click here for the parts in Beisan Kit #BS041

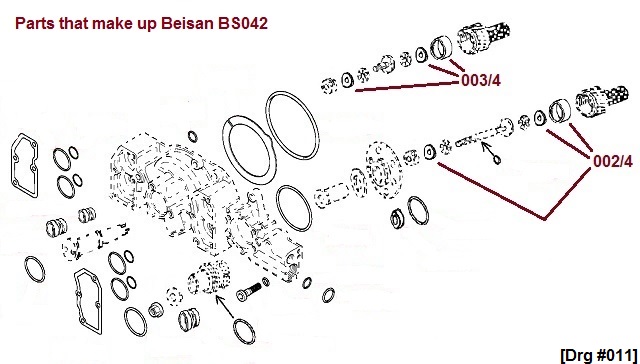

Click here for the parts in Beisan Kit #BS042.  You will also need Tool Kit #BS094
