BMW CD Sets
|
2004 CD set |
2005 CD set |
|
|
CD#01 (Links & Utilities) |
CD#01 (Links & Utilities) |
CD#01 (Links & Utilities) |
|
CD#02 (Sales & Study Notes) |
CD#02 (Sales & Study Notes) |
CD#02 (Sales & Study Notes) |
|
CD#03 (General Diagnosis) |
CD#03 (General Diagnosis) |
CD#03 (General Diagnosis) |
|
CD#04 (Wiring Diagrams) |
CD#04 (Wiring Diagrams) |
CD#04 (Wiring Diagrams) |
|
CD#05 (Wiring Diagrams) |
CD#05 (Wiring Diagrams) |
CD#05 (Wiring Diagrams) |
|
CD#06 (EBA – 01/2002) |
CD#06 (EBA – 01/2002) |
CD#06 (EBA – 01/2002) |
|
CD#07 (KSD – 10/2000) |
CD#07 (KSD – 10/2000) |
CD#07 (KSD – 10/2000) |
|
CD#08 (TIS – 10/2001) |
CD#08 (ETK – 01/2004) |
CD#08 (ETK – 01/2005) |
|
CD#09 (ETK – 03/2002) |
CD#09 (ETK – 01/2004) |
CD#09 (ETK – 01/2005) |
|
|
CD#10 (TIS – 02/2004) |
CD#10 (TIS – 08/2004) |
|
Click here to see what vehicles the discs cover |
Click here to see what vehicles the discs cover |
Click here to see what vehicles the discs cover |
|
£7.99 + P&P |
£8.99 + P&P |
£9.99 + P&P |
CD#01 contains:
1. 1. Four different versions of Adobe Acrobat Reader (5.0.5, 5.1, 6.0.3 and 7.0.1)
2. 2. Technical guides (pdf) for
a. a. BMW 3 Series
b. b. BMW M3
c. c. BMW 5 Series
d. d. BMW 7 Series
e. e. BMW X5
f. f. BMW Z4
3. 3. Useful weblinks to BMW sites around the world (official and unofficial)
4. 4. Adobe Photoshop Album Version 2.0
CD#02 can be run directly from the CD and contains:
- Study notes that can be very useful to the less experienced mechanic. They show you how cars work in general terms. There were taken from the BMW technical study notes used by apprentices (pdf)
- Sales notes (pdf) on
- BMW Series 3
- BMW M5
- BMW 7 Series
- BMW X5
- BMW Z4
- BMW Z8
- 1999 model changes
- 2001 model changes
- 2002 model changes
CD#03 can be run directly from the CD and contains (all pdf):
- Repair Instructions, Special Tools, Technical Data and Torque Settings for
- BMW Series 3 (E36, E36/5, E36/7 [Z3] & E46)
- BMW Series 5 (E39)
- BMW Series 7 (E38)
All the links on this CD have been
re-made by me and the CD is now better than the original. The links are guaranteed. If you find a broken link on this CD I will
correct the fault and send you a new CD free of charge.
CD#04 can be run directly from the CD and contains (all pdf):
- Wiring Diagrams for
- BMW Series 5 (E28, E35 & E39)
- BMW Series 6 (E24)
- BMW Series 7 (E23, E32 & E38)
All the links on this CD have been re-made
by me and the CD is now better than the original. The links are guaranteed. If you find a broken link on this CD I will
correct the fault and send you a new CD free of charge.
CD#05 can be run directly from the CD and contains (all pdf):
- Wiring Diagrams for
a. a. BMW Series 3 (E30, E36, E36/5, E36/7 [Z3] & E46)
b. b. BMW Series 8 (E31)
All the links on this CD have been
re-made by me and the CD is now better than the original. The links are guaranteed. If you find a broken link on this CD I will
correct the fault and send you a new CD free of charge.
CD#06 can be run directly from the CD (but only after software has been loaded on the hard disc) and is the BMW EBA (no, I don’t know what it stands for either!). The EBA is a database listing all the after-market accessories that can be fitted to BMWs. The database is used by BMW mechanics to show them how to fit an accessory. It shows all the tools required, the method and the approximate time to do the job. It’s a very good tool for deciding whether to tackle a job, or to leave it to the professionals.
CD#07 can be run directly from the CD and is the BMW KSD (Kaufmännische Service Daten). It covers cars and bikes up to the year 2000. It contains
- Repair Times. These are given in Flat Rate Units (FRU). Each FRU = 5 mins. You need to know what your local garage’s hourly rate is before you can convert this to money.
- Defect Codes.
- Wheel / Tyre Combinations (bikes are not covered)
I have
made my best efforts to produce accurate sheets, but accept no responsibility
for any mistakes.
The only way to guarantee that the TIS, ETK, KSD and EBA cover your vehicle is to e-mail me with the last seven characters of your chassis number. I will check the discs and e-mail you back with the results.
Screen Shots from the CDs

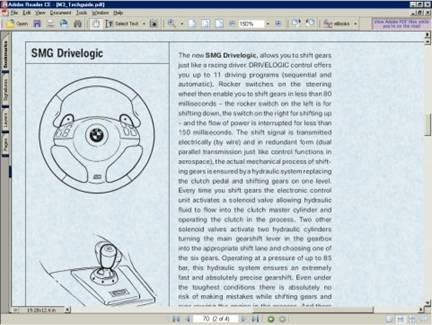

CD Wallet Screen shot of from CD#01 Showing the technical description of the SMG
Drivelogic gear change system on an M3
|
|
|
|

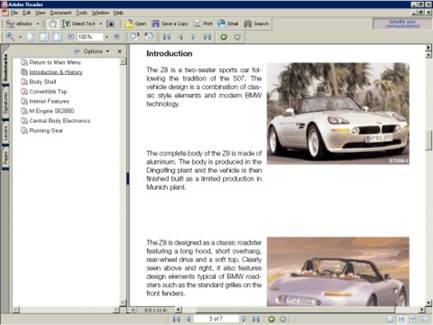

Screen shot of from CD#02 Showing the sales

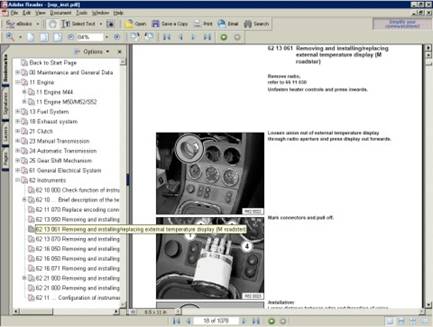

notes for a Z8 Screen shot from CD#03 Showing how to
replace a temperature gauge on a 1998 M Roadster
|
|
|
|

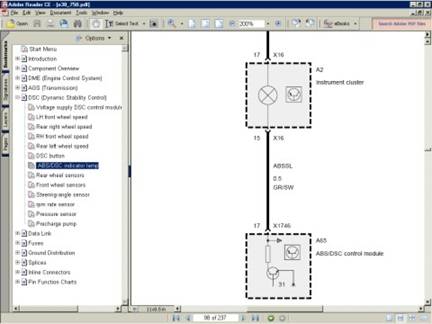

Screen shot from CD#04 Showing the wire from the instrument cluster to

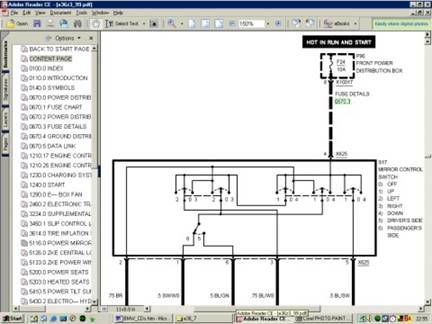

the ABS control module on a 2000 BMW 750i Screen shot from CD#05 Showing the electric mirror circuitry for a
1999 Z3 Roadster
|
|
|
|

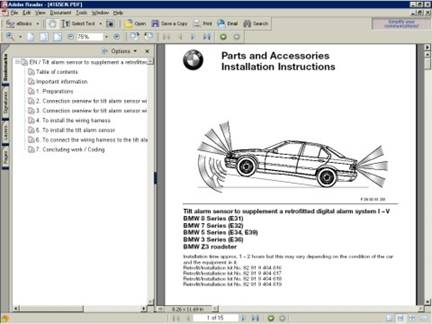

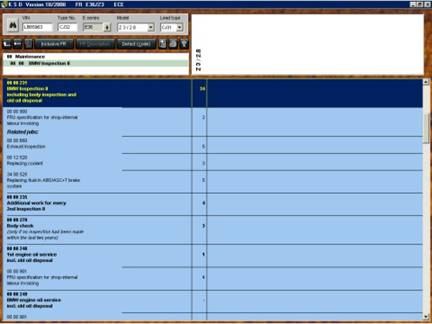

Screen shot from CD#06 Showing how to install a tilt alarm Screen shot from CD#07 Showing the times for an Inspection 2 for a
BMW Z3
|
|
|
|

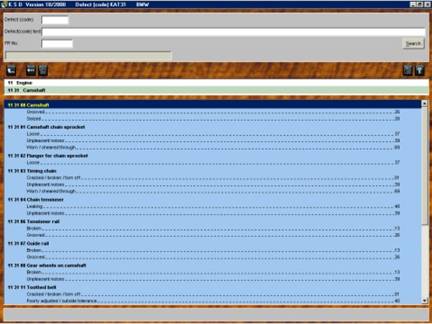

Screen shot from CD#07 Showing the various camshaft defect codes on

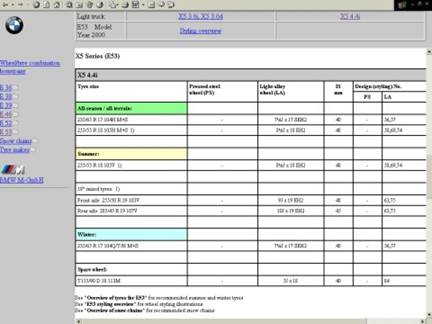

a BMW Z3 Screen shot from CD#07 Showing the wheel & tyre combinations for
a BMW X5 4.4i
|
|
|
|
